Force Measurement System – Push & Pull Force Testing Solutions

We offer advanced Force Measurement Systems in Pune designed for accurate and reliable push force measurement and pull force measurement applications across various industries. Our systems are widely used in hydraulic press, pneumatic press, wire testing, rod testing, and industrial assembly quality control.

Our force measurement solutions help industries ensure proper fitment, dimensional accuracy, and product quality by precisely monitoring applied force during assembly or testing operations.

Push Force Measurement System

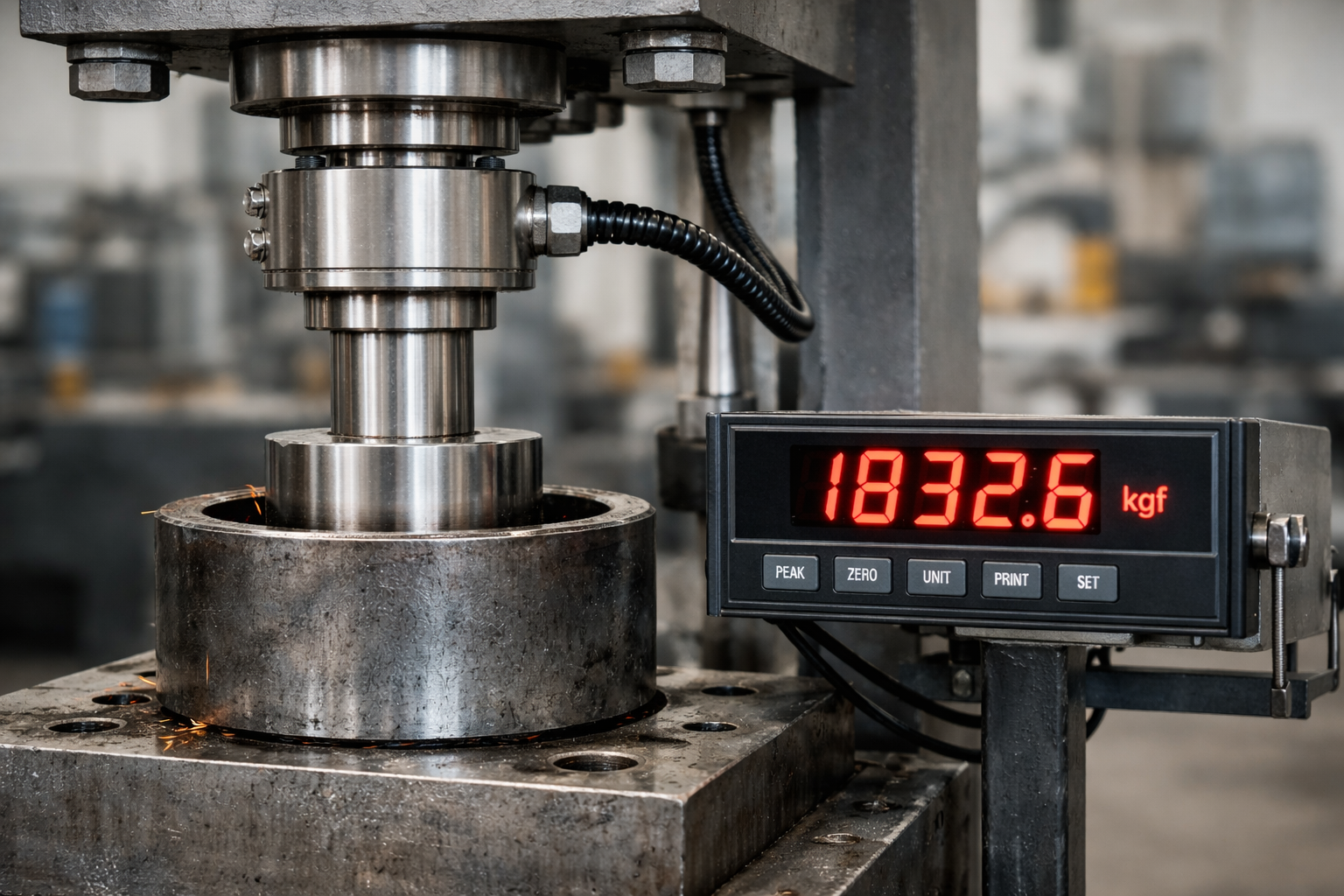

Our Push Force Measurement System is commonly integrated with hydraulic presses and pneumatic presses to verify correct part assembly.

Application:

During assembly, when an inner component is pressed into an outer component:

• If excessive force is required → It indicates tight fitment (possible issue with ID of outer part or OD of inner part).

• If very low force is observed → It indicates loose fitment or dimensional variation.

• If force trend is uniform → Assembly is within acceptable tolerance.

This helps manufacturers detect:
✔ ID/OD dimensional variations
✔ Friction issues
✔ Improper machining tolerances
✔ Assembly defects
✔ Rejection reduction and quality improvement

Our system provides real-time force monitoring, peak force display, and optional data logging, ensuring consistent production quality.

Pull Force Measurement System

Our Pull Force Testing System is widely used for tensile strength and pull-out testing applications such as:

• Copper wire pull force testing

• Steel rod pull testing

• Crimping pull force validation

• Glass installation concrete anchor pull test

• Cable and terminal testing

This system ensures product strength, safety compliance, and durability verification for industrial applications.

Key Features

✔ High precision load cell based force measurement
✔ Digital display with peak hold function
✔ Suitable for integration with hydraulic & pneumatic presses
✔ Customizable capacity options (as per industry requirement)
✔ Rugged industrial construction
✔ Optional data recording & reporting system

FAQ’S

1. What is a force measurement system?
A force measurement system is an industrial testing solution used to measure push and pull forces during assembly, testing, or inspection processes. It typically uses load-cell technology to provide accurate, real-time force readings.
2. What is the difference between push force and pull force measurement?
Push force measurement determines the force applied when pressing, inserting, or assembling components, while pull force measurement determines the force required to pull, separate, or extract a component. Both are useful for product quality and strength verification.
3. How is a force measurement system used with hydraulic and pneumatic presses?
A force measurement system can be integrated with hydraulic or pneumatic presses to monitor the force applied during assembly. Unusually high or low force can indicate tight fitment, loose fitment, dimensional variation, friction issues, or assembly defects.
4. What applications require pull force testing?
Pull force testing is commonly used for copper wire testing, steel rod testing, crimp validation, cable and terminal testing, and concrete anchor pull testing. It helps verify product strength, durability, and assembly quality.
5. What is peak hold in a force measurement system?
Peak hold is a function that captures and displays the maximum force recorded during a test. This makes it easier to identify the highest push or pull force applied during an industrial testing process.
6. Which industries use force measurement systems?
Force measurement systems are commonly used in automotive, engineering, moulding, construction, manufacturing, assembly, and quality-control applications where accurate push or pull force monitoring is required.
7. What applications can Careweigh’s Force Measurement System handle?
Careweigh’s system can be used for press-fit component inspection, copper wire pull testing, steel rod testing, crimp validation, anchor pull testing, and other industrial push and pull force measurement applications.
8. Does Careweigh’s Force Measurement System use load-cell technology?
Yes. Careweigh uses high-precision load-cell-based force measurement technology to provide accurate force monitoring for industrial testing and assembly applications.
9. Can Careweigh customize the capacity of a Force Measurement System?
Yes. Careweigh offers customizable capacity options based on specific industrial requirements, making the system adaptable to different force-testing and production applications.
10. Does Careweigh’s Force Measurement System support data recording?
Yes. Careweigh offers optional data recording and reporting functionality. The system also provides real-time force monitoring and peak force display to support production quality control.
